Fastmicro

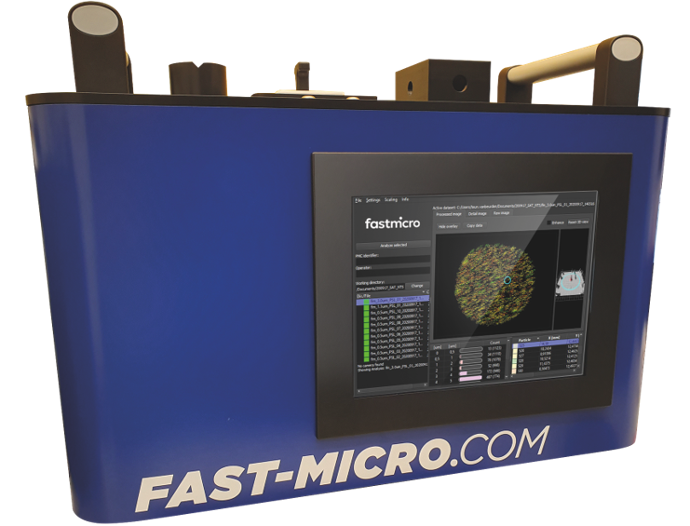

Sample Scanner

The Fastmicro Sample Scanner measures surface particle contamination levels within seconds-indirectly via samplers-enabling customers to achieve an operator workflow of less than a minute.

Reliable measurements with SP Samplers
The combination of scanner and sampler (interface) allows robust measurements on all kinds of surfaces and in places that are difficult to reach, and on relatively rough surfaces. The samplers collect particles from the surface, without causing cross-contamination.

The versatility of the Sample Scanner is enhanced with different interfaces, such as a Sampler Interface, and a 2-inch Wafer Interface for fallout measurements. This adaptability makes it suitable for different applications across various industries, providing robust measurements and valuable insights into contamination levels.

Parts qualification.

Parts that pass visual inspection can still carry submicron particles that cause contamination downstream. Without objective measurement, suppliers and customers lack a common basis for agreeing on cleanliness. Quantitative sampling at defined process steps verifies whether a part meets its specified cleanliness grade before it is integrated into a system.

read article  →

The new standard in surface particle contamination measurements

● how-to videos

A closer look at the Fastmicro Sample
Scanner​.


Some things are easier to show than to explain. How-to videos walk you through a task step by step, so you can see exactly what to do and how it should look when it’s done right.


Sampling workflow with SP Sampler

Witness wafer workflow

Sampling workflow with PMC 2.0

cleanliness project manager,
leading Dutch semiconductor OEM:

"We have confidence in the Fastmicro scanner to help us with finding an excellent quantification of the surface cleanliness of critical parts."


read review →



What our
customers say
.

Their success stories reflect our commitment
to excellence in particle measurement and cleanliness control.



​Particle detection (LDL)
0.5 µm PSL equivalent particles (NIST certified) and up.


​Analysis
Quantity, position and size of particles.


Qualification
According to ISO 14644-9.


​Imaging in seconds
Total workflow < 1 minute.


Workspace cleanliness monitoring

Cleanroom cleanliness monitoring

Clean process qualification

Troubleshooting, Failure Analysis, particle investigations

Clean surface / product / assembly / tooling qualification

● Applications
Specifications
SAS-V01
.
Measurement workflow with the
Fastmicro Sample Scanner.

The Sample Scanner's interface upgrade kits make it possible to use different type samplers on curved, rough and hard-to-reach surfaces.

●
Sampling

Take a tape-lift sample from the part.

● ●
Processing

Place the sampler in the scanner. Imaging takes seconds.

● ● ●
Analyzing

Read particle count, size and position on screen.


Yes. The Fastmicro Sampler is a surface particle contamination inspection tool for indirect measurements of particle count, size and location down to 0.5 micrometer particles. Our 'tape-lift' samplers enable flexible sampling on a variety of surfaces, including those that are difficult to reach or are unusually rough, without leaving any measurable residue. The versatility makes the sampler suitable to test diverse situations across various industries, providing robust measurements and valuable insights into contamination levels.

Disclaimer: For ASML Grade 1 product qualification, Particle Measurement Cards (PMCs) are the released solution used with the Fastmicro Sample Scanner.

Purely taking and processing images will take less than 30 seconds. There are other factors that take time to consider: relaxation time of a PMC, handling of the sample, speed of data transfer to optional network location (depending on connection).

The Sample Scanner only requires 110/230V AC power with earth connection.

First a Site Acceptance Test needs to take place to make sure the scanner still performs as calibrated. And a training for supervisors is required. A 4-hour training for up to 4 participants is included with the purchase of a Sample Scanner. Both can be done remotely.
