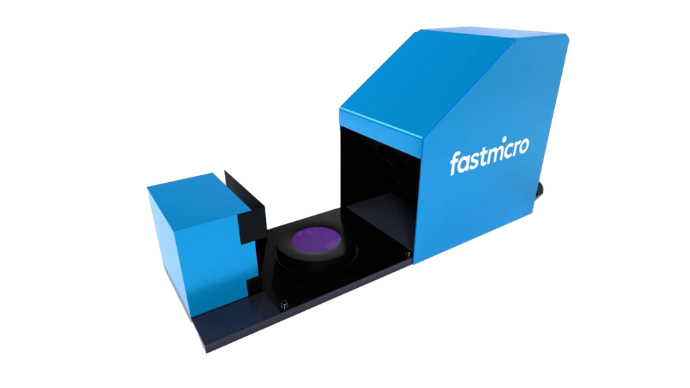

Particle Fallout Scanner

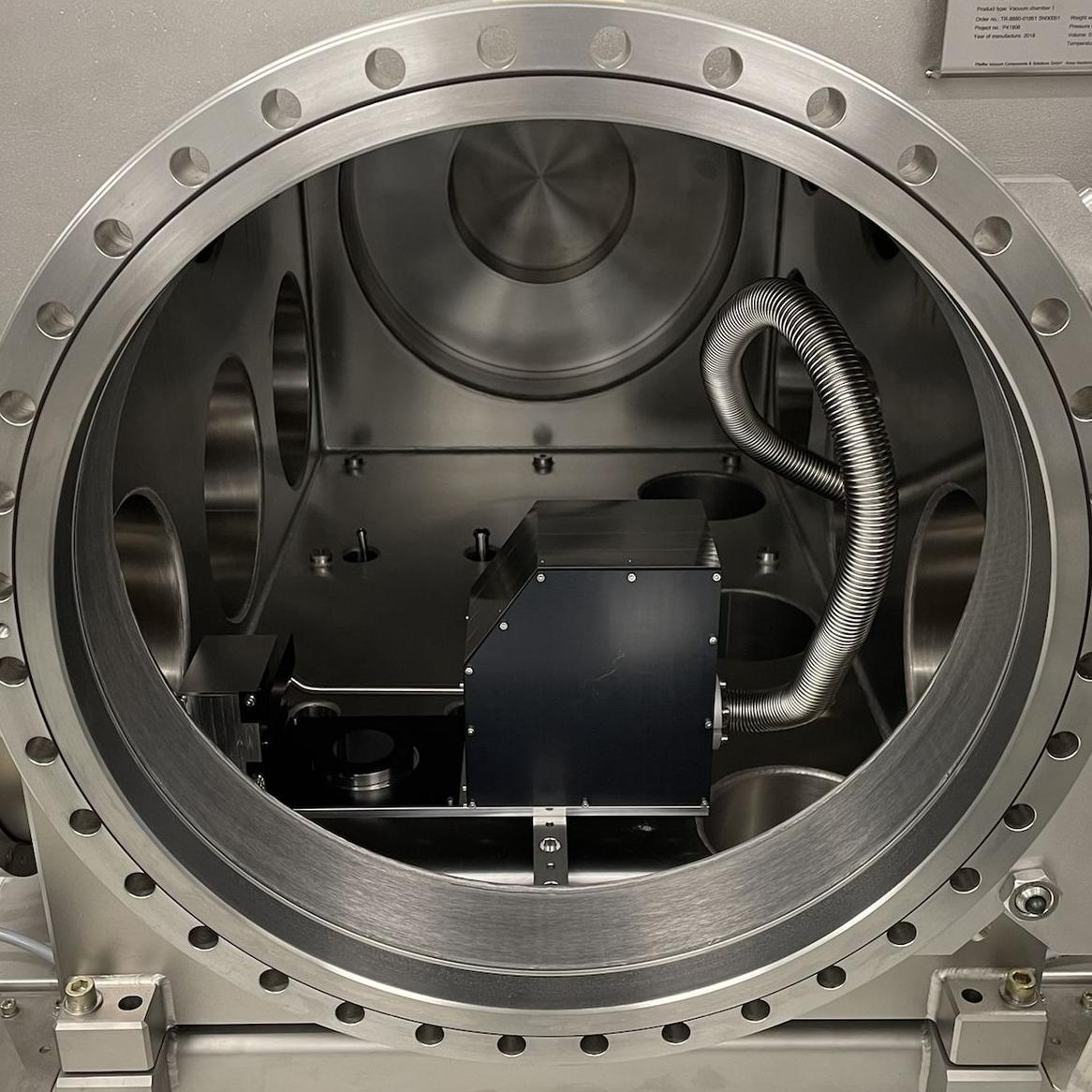

Monitor what actually settles on surfaces over time -not only what remains airborne. Designed for particle deposition rate monitoring in ambient and vacuum environments.

The operator friendly monitoring software helps process engineers to track particle contamination in-situ and address cleanliness process control challenges. In combination with standard 2-inch Si wafers, the solution enables continuous measurement on the system and batch-wise measurement of particle traps distributed across the cleanroom over a defined period.

The Particle Fallout Scanner offers continuous particle fallout monitoring with short ≥ 10 second intervals with a large field of view on the surface area of a 2-inch industry standard witness wafer.

The particle deposition rate is measured accurately from 0.5 μm and up PSL equivalent particle size (NIST certified).

Products in a cleanroom that meets its ISO air cleanliness class can still collect particles on critical surfaces. Airborne counts do not show what settles on products, or when. Monitoring the particle deposition rate at critical locations shows whether surface contamination remains within limits and links deposition events to their cause.

read article  →

Deposition monitoring.

● how-to videos

A closer look at the
Fastmicro Particle

Fallout Scanner​.


Some things are easier to show than to explain. How-to videos walk you through a task step by step, so you can see exactly what to do and how it should look when it’s done right.


The new standard in surface particle contamination measurements

Real-time process monitoring

Process monitoring

cleanliness project manager,
leading Dutch semiconductor OEM:

"We have confidence in the Fastmicro scanner to help us with finding an excellent quantification of the surface cleanliness of critical parts."


read the review →


What our
customers say
.

Their success stories reflect our commitment
to excellence in particle measurement and cleanliness control.

● Applications

Continuous cleanroom monitoring

Continuous in-site process monitoring

Continuous workspace monitoring

Batch measurement of 2-inch wafers

Specifications
PFS-AMB01
.


Particle detection (LDL)
0.5 µm PSL equivalent particles (NIST certified) and up.


​Analysis
Quantity, position and size of particles.


Qualification
According to ISO 14644-17.


Measurement time interval
10 seconds and up.


Yes, there always comes a point when the wafer becomes saturated and clustering may occur. However, exactly when this happens depends on various variable factors, such as initial cleanliness and the cleanroom environment (cleanroom class, processes). As this varies by application, please contact our technical department for estimates.

It depends on your export needs, with a minimum time interval of 10 seconds.

The Particle Fallout Scanner only requires 110/230V AC power with earth connection.

First a Site Acceptance Test needs to take place to make sure the scanner still performs as calibrated. And a training for supervisors is required. A 4-hour training for up to 4 participants is included with the purchase of a Particle Fallout Scanner. Both can be done remotely.
