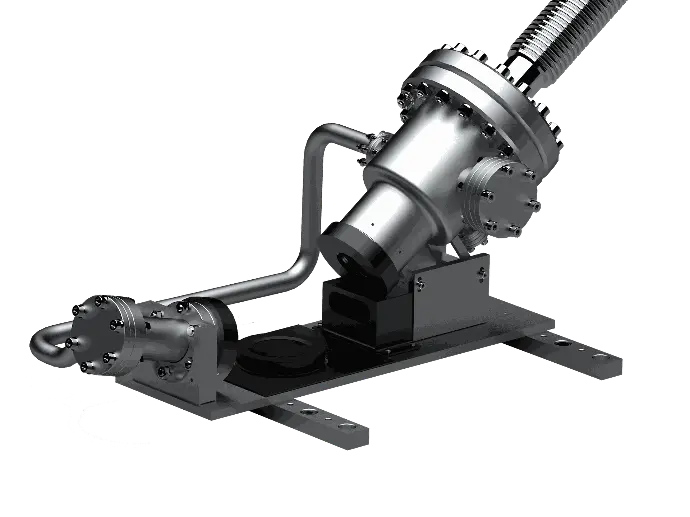

High Vacuum

Fallout Scanner

Particle deposition rate monitoring with intervals of seconds.


​   Deposition rate monitoring according to the ISO 14644-17 Standard

​   Measurement time-intervals of 10 seconds or greater

​    Lower Detection Limit of 0.5 µm and up of PSL equivalent particles


Contact U​​s ​​​​​    Request Datasheet ​

FAST

QUANTITATIVE

EASY TO OPERATE

ACCURATE

CONSISTENT

HIGH THROUGHPUT



Fallout Scanner for particle fallout measurements.

The Fastmicro Fallout Scanner has been developed to measure the particle deposition rate in any industry. It can be used in both vacuum as well as ambient environments. The scanner module is also available as a white label solution for system integrators.


Continuously measure where and when it matters.

The Fastmicro Fallout Scanner offers particle deposition rate monitoring with intervals in seconds.

The particle deposition rate can be accurately measured starting at particles of just  0.5 µm.


Combined with the easy to use software, we help our customers to view cleanliness measurements on surfaces instead of airborne-only. Not all particles remain airborne, as they could deposit on critical surfaces, impacting technical cleanliness.


With the Particle Fallout Scanner, the actual deposition rate becomes clear and can be used for further cleanliness improvement.


Are you ready for the next step in cleanliness control?

Contact us and make your particle measurement in seconds.

Contact Us Now  ​

​High Vacuum PFS Specifications

Fast and High Production Throughput

  • Continuous monitoring of particle deposition on a surface with intervals of seconds

Data Output

  • Analysis: Quantity, Position and Size of particles
  • Adder analysis: monitoring of incremental particle levels
  • Annotated image with particle detection overlay, plus ‘3D’ signal representation of any operator-selected particle
  • Reporting: export function including KLARF and Excel Files (including standard bin sizes)
  • Qualification report in UI and PDF, according to ISO standards 14644-9 and 14644-17

Easy to Operate

  • Operator independent

Detection Range

  • Detection limit from 0.5 µm PSL particles
  • 90% cumulative particle count with PSL particles from 0.5 µm
  • A Field of View of 1" diameter on a replaceable 2" diameter surface (25mm on 50mm)

Applicability

  • Vacuum environments 10e or better
  • Enabling workflow with follow-up analysis

Dimensions

  • 525x335x260mm [LxWxH]

Fashion Model

  • FM-PS-PFS-V01

Contact Us Now

about anything related to our High Vacuum Particle Fallout Scanner
